Stem Repairs

Stem-Patch Combination Repairs

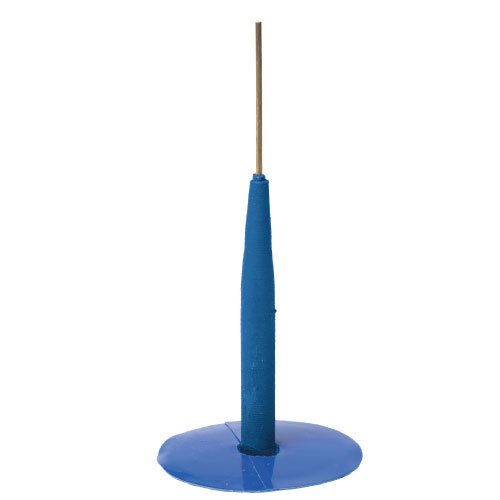

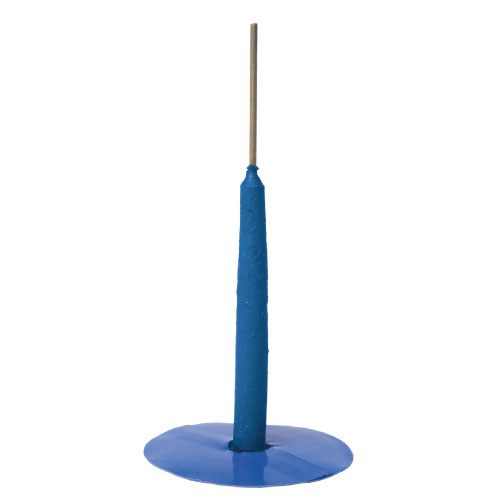

The stem-patch is the ultimate tire repair of choice for quality high performance tire repair including standard automobile to commercial truck tires. The Stem Patch offers a vulcanizing rubber stem and cap unit that vulcanizes to both the injury and the inner liner of the tire. The built in lead wire makes installation simple. The repair is equipped to withstand straight through punctures and injuries up to 25 degree off center. It utilizes a rubber reinforced body that vulcanizes to the tires inner liner combined with a vulcanizing rubber stem that bonds around the injury cavity. This performs an air tight seal to protect the tire’s body plies from moisture and contaminants entering around the stem plug.

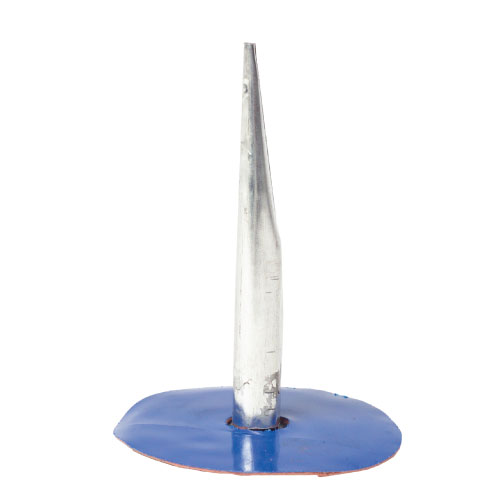

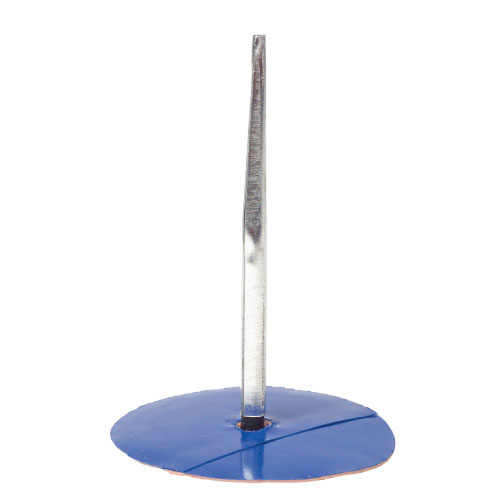

*Stem repairs are also available with a quill instead of a lead wire

stem-repairs-2 stem-repairs-3

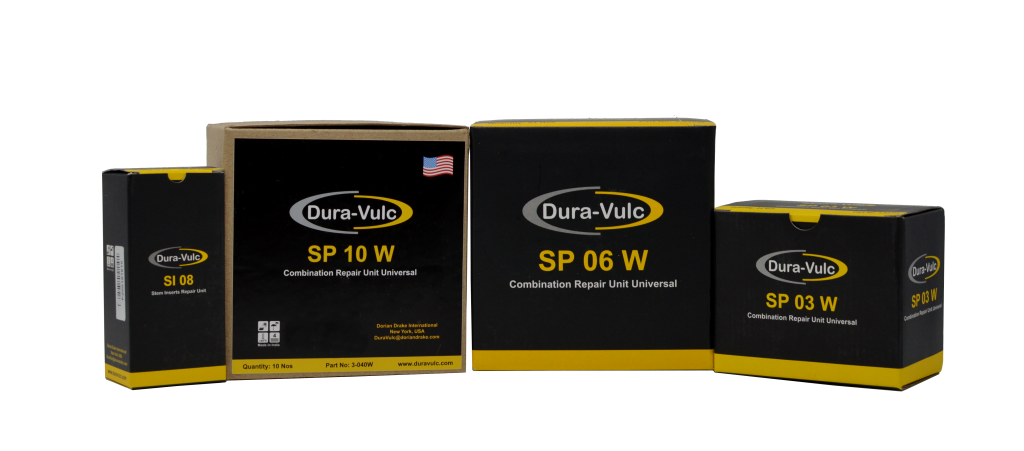

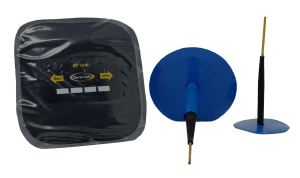

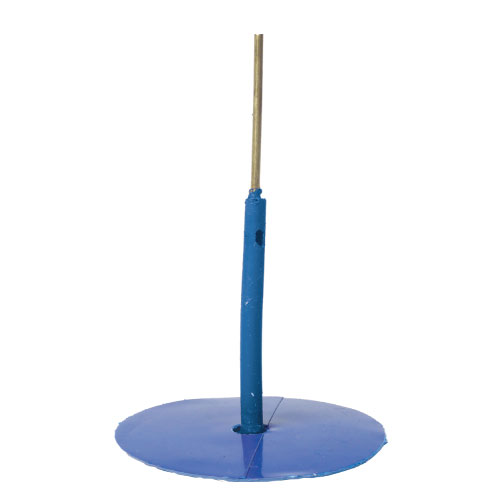

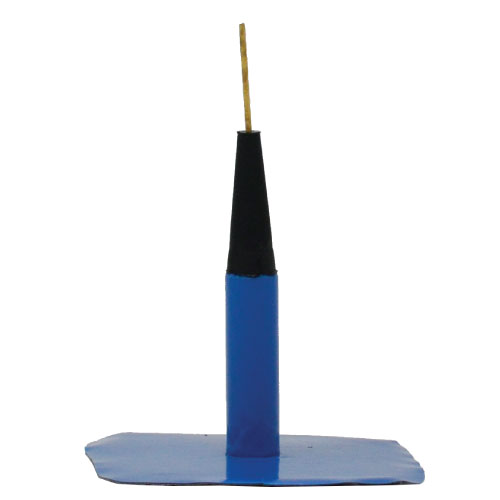

Stem Patch Unit

Part NumberRepair Unit CodeStem Diameter ØRepair Unit Diameter ØInjury Size ØCarbide Cutter
MMInchMMInchesMMInch
3-365 SP 03 W 3.5 1/8 19 3/4 3 1/8 ECC03
3-366 SP 06 W 8 3/16 55 2 ½ 6 1/4 ECC4.5
3-367 SP 08 W 10 3/8 65 2 ½ 8 5/16 ECC06
3-368 SP 10 W 13 1/2 85 3 1/8 10 3/8 ECC08

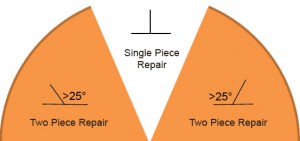

Injury penetration on angle within 25°, use the stem repair units.

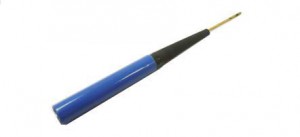

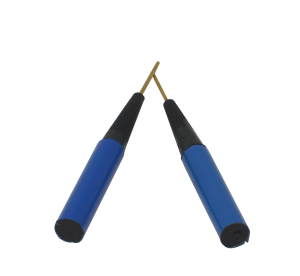

Stem Insert

Part NumberRepair Unit CodeStem Diameter ØInjury Size ØCarbide CutterUnits/Box
MMInchMMInch
3-370 SI 06 W 8 5/16 6 1/4 ECC4.5 25
3-371 SI 08 W 10 3/8 8 5/16 ECC06 25
3-372 SI 10 W 13 1/2 10 3/8 ECC08 10

Injury penetration angle exceeds 25°, use the stem insert. To be reinforced with suitable repair unit.

Universal Repair Unit

Part NumberRepair Unit CodeRepair Unit Diameter ØInjury Size Ø *
MMInchMMInchRecommended Stem Insert
3-302 UP 55 55 2 1/8 6 1/4 SI 06 W
3-303 UP 65 65 2 1/2 8 5/16 SI 08 W
3-304 UP 85 85 3 3/8 10 3/8 SI 10 W

* Passenger and Medium Tire Repair Crown Only(T-T)(INJURY MUST BE FILLED WITH APPROPRIATE FILLER MATERIAL)

All Purpose Repair Unit

Part Number Repair Unit Code Repair Unit Diameter Ø Tube Injury Injury Size Ø *
MM Inch MM Inches MM Inch Recommended Stem Insert
3-320 AP C 45 R* 45 1 3/4 N/A N/A 3 1/8 SI 06 W
3-323 AP C 55 R* 55 2 1/4 N/A N/A 3 1/8 SI 06 W
3-327 AP C 65 R* 65 2 1/2 N/A N/A 6 5/16 SI 08 W
3-330 AP C 75 R* 75 3 1/4 N/A N/A 6 5/16 SI 08 W
AP C 85 R* 85 3 N/A N/A 10 3/8 SI 10 W
3-334 AP S 45 R* 45 1 3/4 N/A N/A 3 1/8 SI 06 W
3-337 AP S 55 R* 55 2 1/4 N/A N/A 3 1/8 SI 06 W
3-342 AP S 75 R* 70 2 1/2 N/A N/A 6 5/16 SI 08 W
* PASSENGER AND lT TIRE REPAIR CROWN 0NLV(T-T) (INJURV MUST BE FILLED WITH APPROPRIATE FILLER MATERIAL)

Tires with speed rating of H, V, W, Y or Z are repairable in the (T-T} crown area not to exceed 1/4″ (6mm} or one injury per tire to maintain their speed rating designation. Run flat tires maintain the same limitation as the performance tire except multiple nail hole repairs may be performed unless it is in the same radial cord or where repair units overlap. Performance tires are repairable beyond the shoulder area; the speed rating is then reduced below an H rating. Note: Repair of Performance tire should not exceed or supersede limitation of the new tire manufacturer’s recommendations. Repairs with * are not for tube repair.

Tube Repair Unit

Part Number Tube Repair Unit Repair Unit Code Repair Unit Size Injury Size Ø
MM Inches MM Inches
3-350 CIRCULAR CT 25 30 1 3/16 9 3/8
3-351 CIRCULAR CT 40 40 1 1/2 13 1/2
3-353 CIRCULAR CT 45 45 1 3/4 20 3/4
3-355 CIRCULAR CT 55 55 2 3/16 30 1 1/4
3-358 CIRCULAR CT 75 75 3 50 2
3-360 CIRCULAR CT 100 100 4 75 3
3-362 0VAL OT 40 40 X 30 1 5/8 X 1 13 X 3 1/2 X 1/8
3-363 0VAL OT 75 75 X 40 3 X 1 5/8 50 X 13 2 X 1/2
3-364 0VAL OT 100 100 X 50 4 X 2 75 X 25 3 X 1
This selection repair chart is to be used as a suggested guide only. Conditions may affect limitations by load, speed and application.
